FCC SDoC认证解读

PART 1

FCC 新闻要点


2017 年11 月02 日FCC 发布官方通告,即日起删除原来FCC 47CFR Part 2§2.902 Verification (VoC),正式把VoC 与DoC 合并为Supplier's Declaration of Conformity (SDoC), 这标志着广大制造厂商期盼已久的SDoC 认证程序正式生效, 并且可以使用FCC 标志在产品上!



FCC 官方通告链接:https://www.fcc.gov/engineering-technology/laboratory-division/general/equipment-authorization


PART 2

FCC SDoC的主要变化


合并VoC和DoC为SDoC

— 要求对产品负责的机构必须在美国

— 不要求测试实验室必须获得FCC认可

— 不强制要求FCC标志

— 需要警告语和告知用户的信息


PART 3

FCC 认证流程变更


1、产品正常按照FCC Part 15 B测试并通过

2、在美国销售该产品的公司自己出具SDoC宣告书,宣称产品符合FCC Part 15B的要求

3、测试机构不出具所谓的FCC证书,改为SDoC宣告书

PART 4

FCC 标准要求


FCC 在www.ecfr.gov网站上查到,FCC随时更新其中的章节,所以这里才是最新的标准,当然也就不存在年限。

  普通产品认证程序在Title 47, PART2 Subpart J 章节(2.906就是SDoC)

普通产品的认证标准是Title 47,PART 15 Subpart B章节。


SDoC就是一个自我声明的程序,只要有产品经过测试并且合格的数据,根本就不需要FCC认可的实验室。第三方实验室就可以了。


以上是关于FCC的一些基础知识


下面我们了解一下有关认证的干货吧

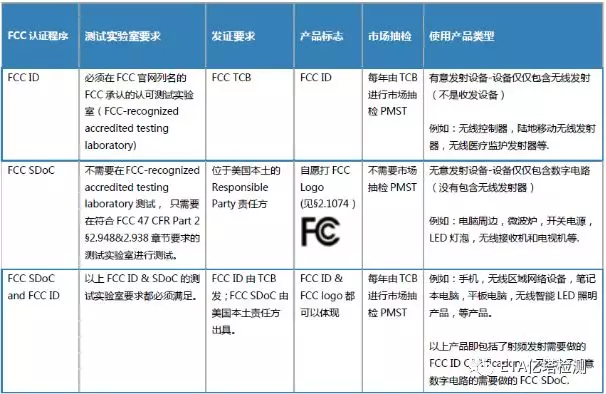

PART 5

FCC 认证程序对比表

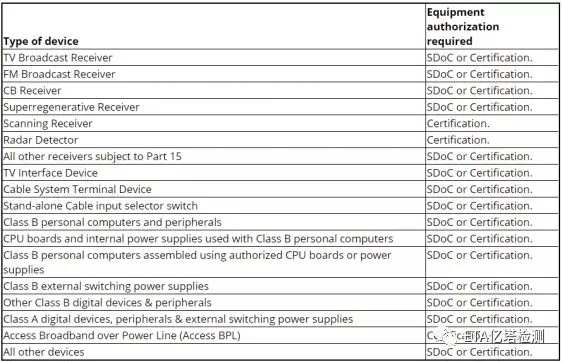

PART 6

FCC PART 15 B 认证类型

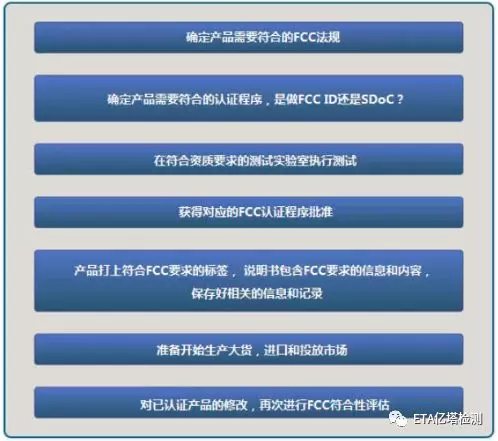

PART 7

FCC 认证流程图




认证的干货看完了


我们再看看一下认证的影响以及信息及标签要求

PART 8

FCC 新认证程序对制造厂商和进出口商带来的影响


(1) 依据FCC 官方文件FCC 17-93 规定,2017 年11 月02 日起,进入美国海关时不再需要填写的FCC Form 740(Statement Regarding The Importation Of Radio Frequency Device Capable Of Causing Health Interference), 这意味着FCC对进口RF设备不再要求填写繁琐的文件表格了,进一步简化RF 设备进口流程。

(2) FCC SDoC认证程序比原有程序,更加简化和清晰,可以使用电子标签E-labeling在产品上。E-labeling产品屏幕显示相关认证信息,要求小于3 次动作必须显示电子标签,但是外箱上面还是 要张贴物理标签,以备海关查验。


PART 9

FCC告知用户的信息


For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: 需要放在说明书上

   Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:



—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.


PART 10

FCC标签要求

All other devices shall bear the following statement in a conspicuous location on the device:

   This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

   上面红色标注的这段话很重要,要放在说明书上。不再强制要求FCC LOGO

—测试跟旧Verification没区别

取消FCC LOGO的强制要求

增加美国负责机构的宣称


FCC总结
